extra: 1d kinematics

The Physics Classroom

This is an excellent interactive website, with lots of useful exercises:
Distance vs. Displacement, Acceleration, Name That Motion, Motion Diagrams, Graph That Motion, Match That Graph, Position-Time Graphs - Conceptual Analysis, Position-Time Graphs - Numerical Analysis, Dots and Graphs, Which One Doesn’t Belong?, Free Fall, Up and Down.

Video Lectures

Khan Academy - One-dimensional motion
Motion in a Straight Line: Crash Course Physics #1
Michel van Biezen - Lectures in MOTION IN ONE DIMENSION
Michel van Biezen - Lectures in Motion in 1 Dimension: GRAPHIC SOLUTIONS

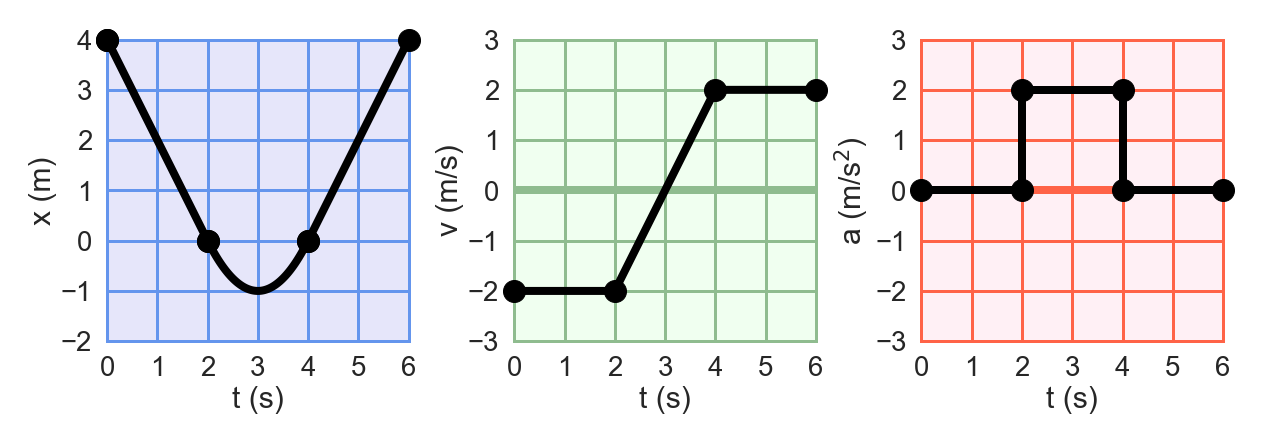

x, v, a graphs

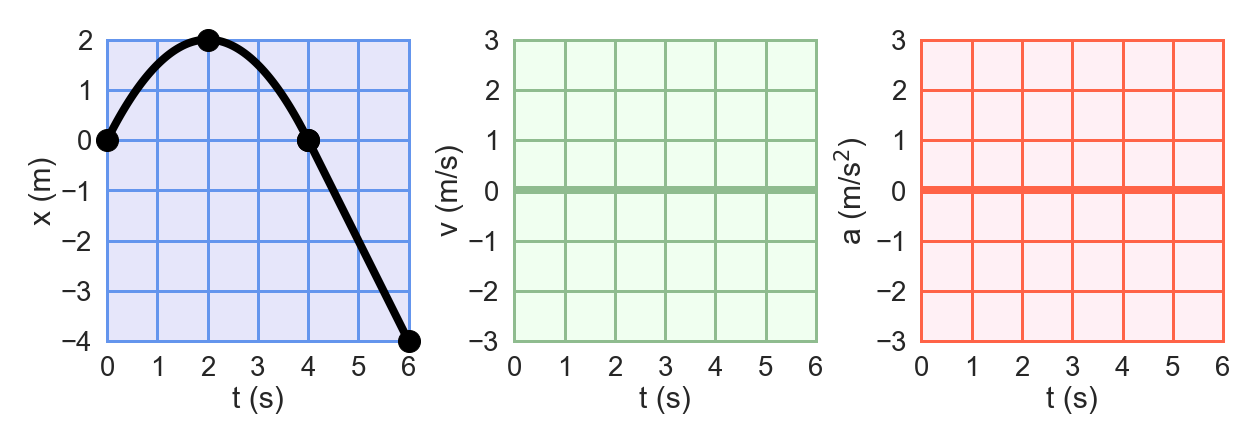

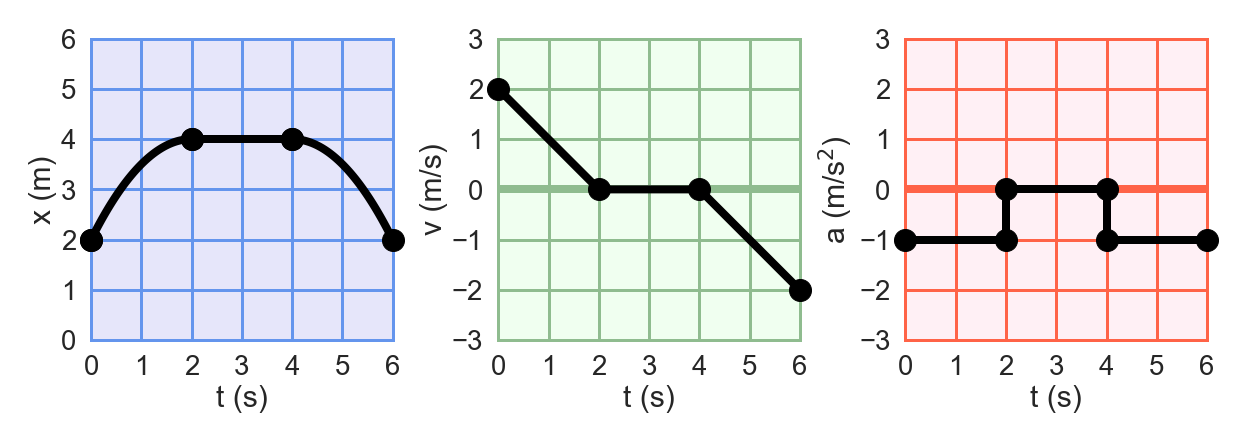

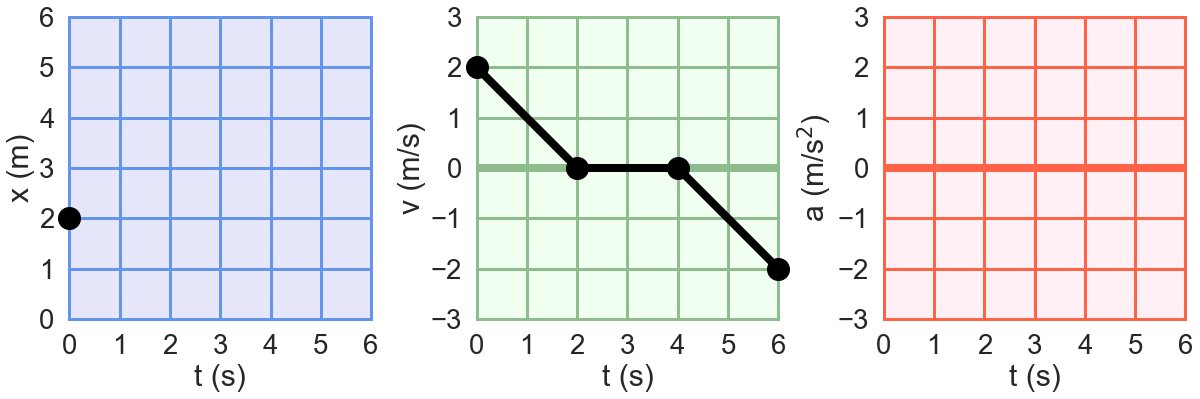

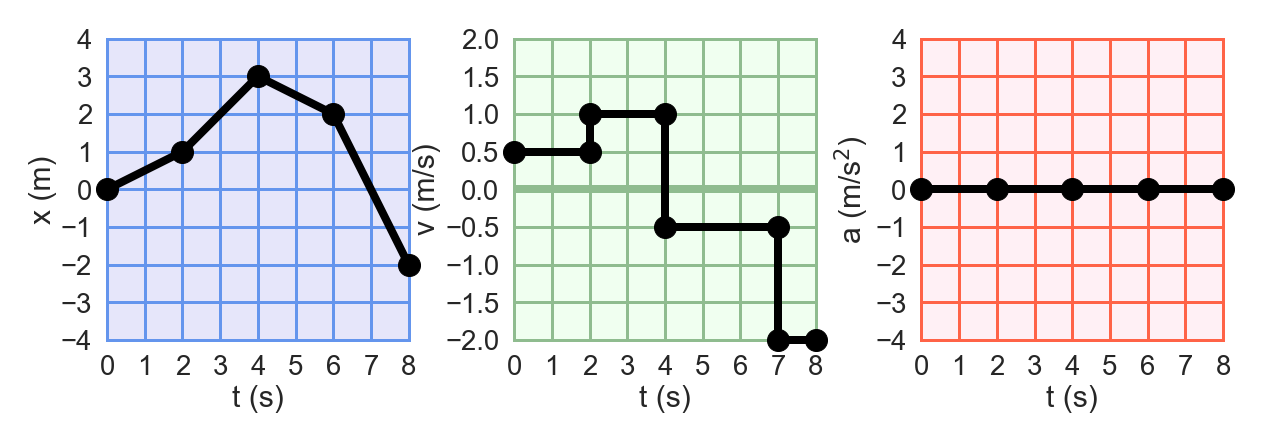

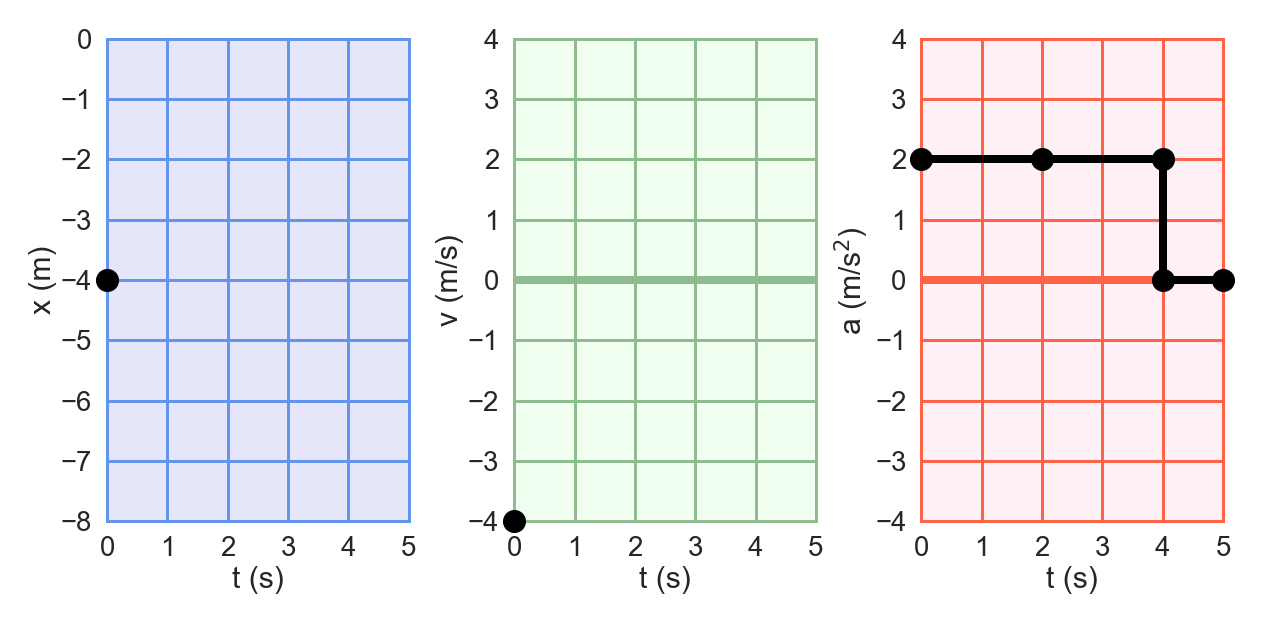

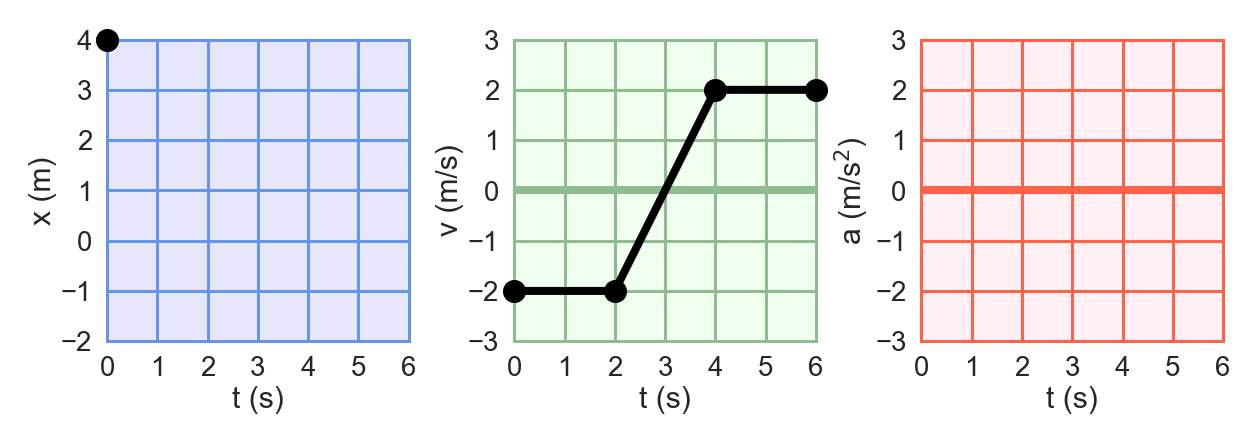

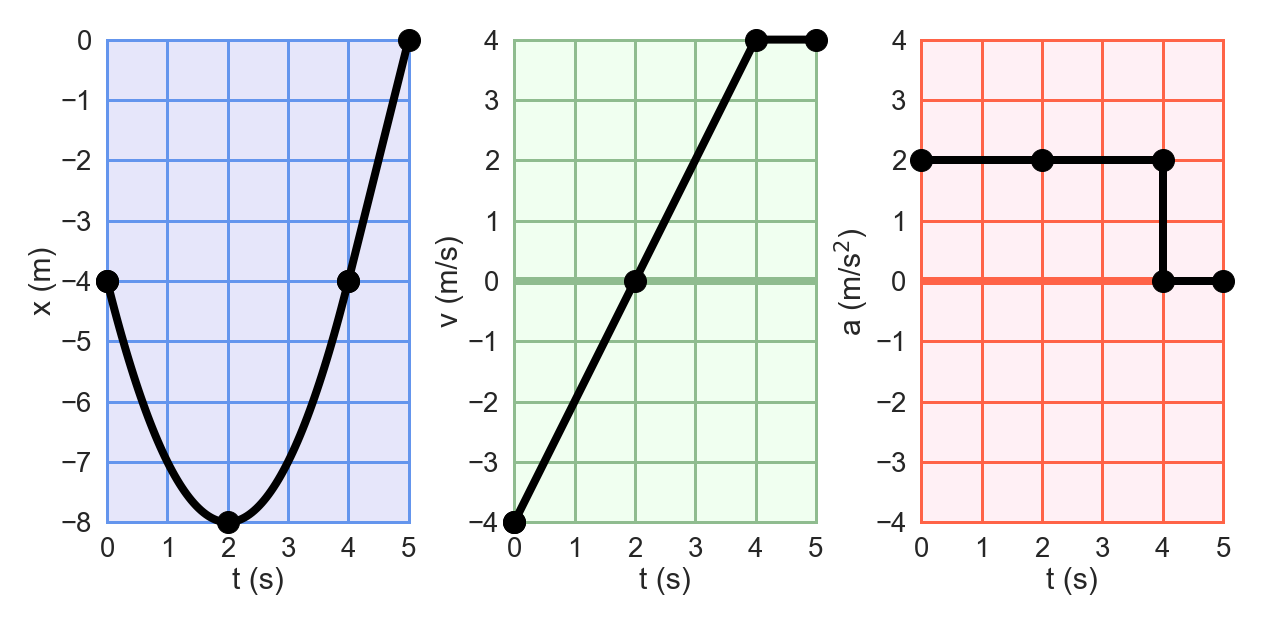

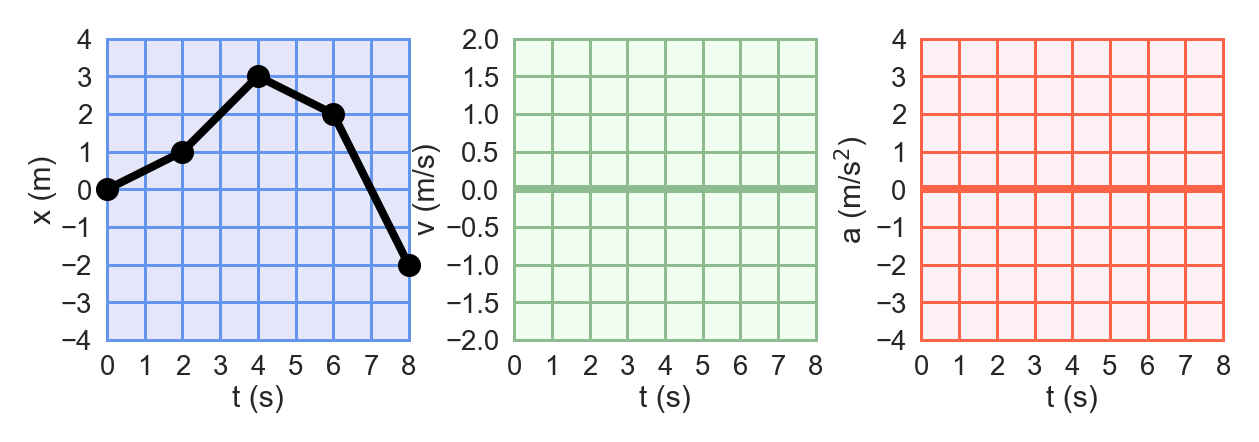

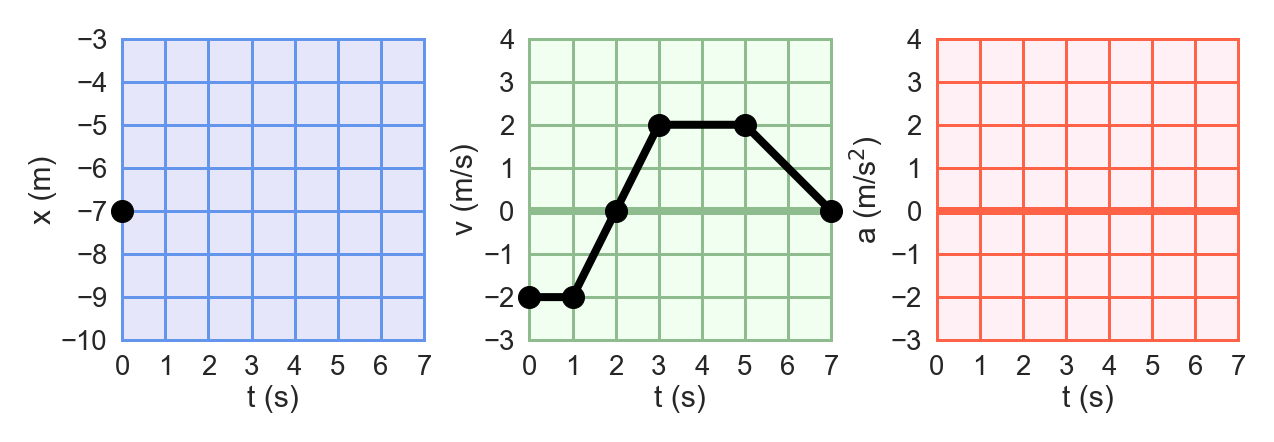

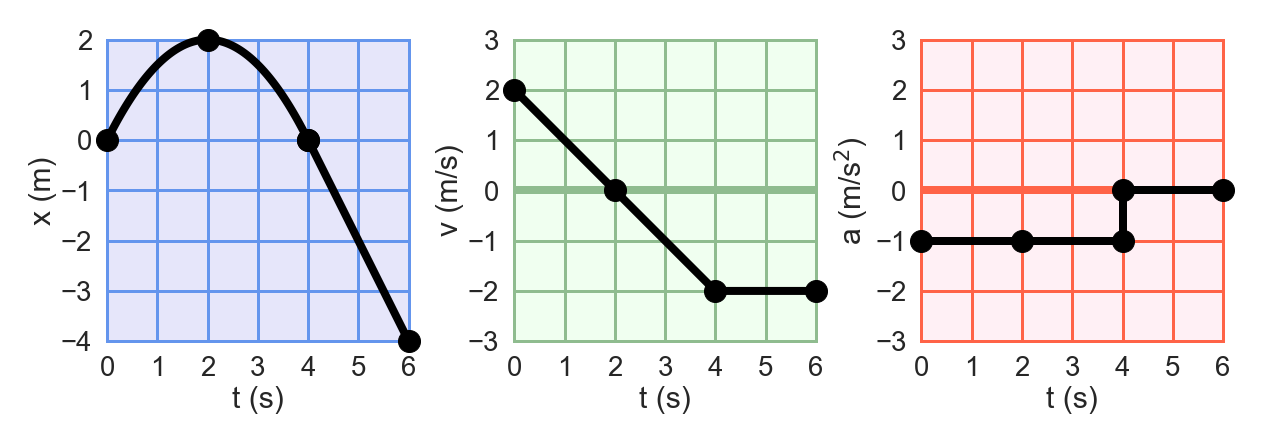

Draw the missing curves, with black dots in the same instants in time as in the given curve. All curved lines are parabolas.

Exercise 1

Exercise 2

Exercise 3

Exercise 4

Exercise 5

Exercise 6

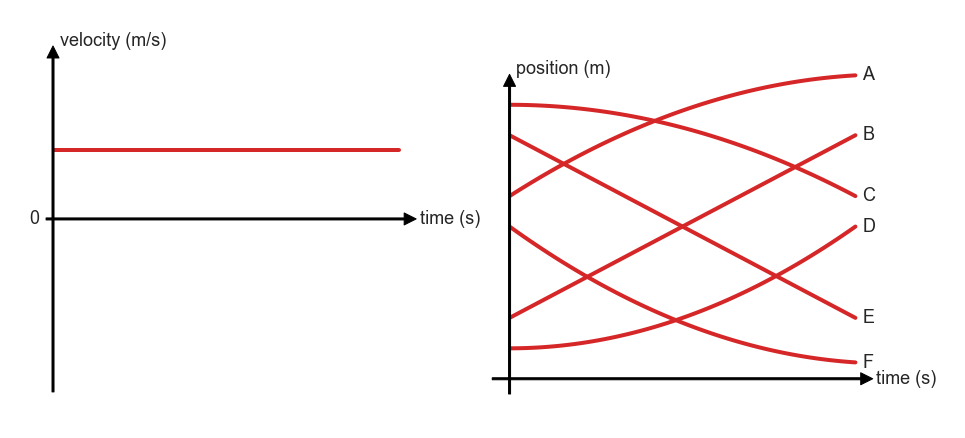

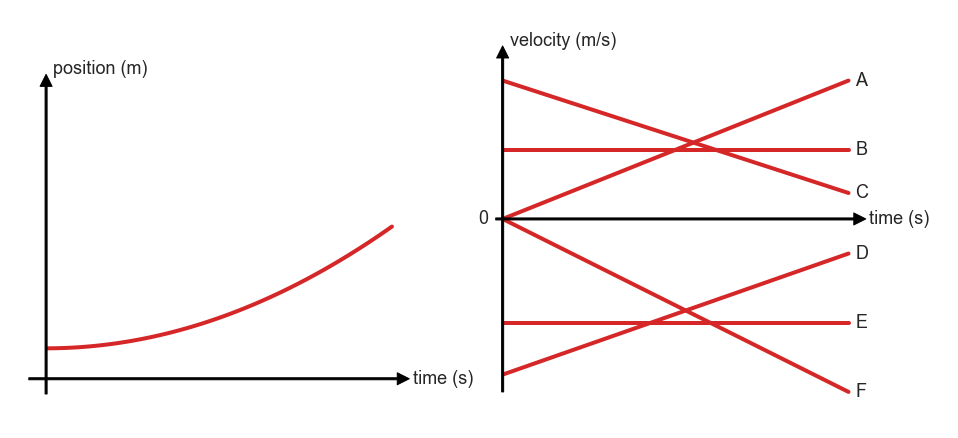

Match the graphs, x and v

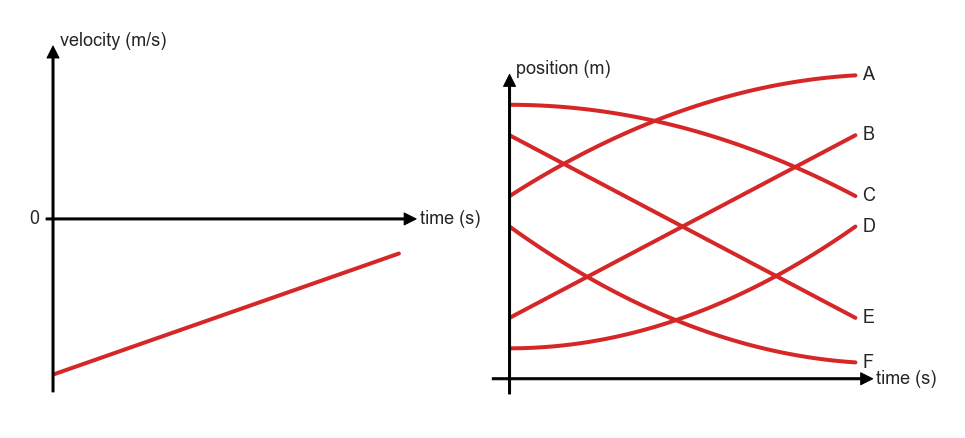

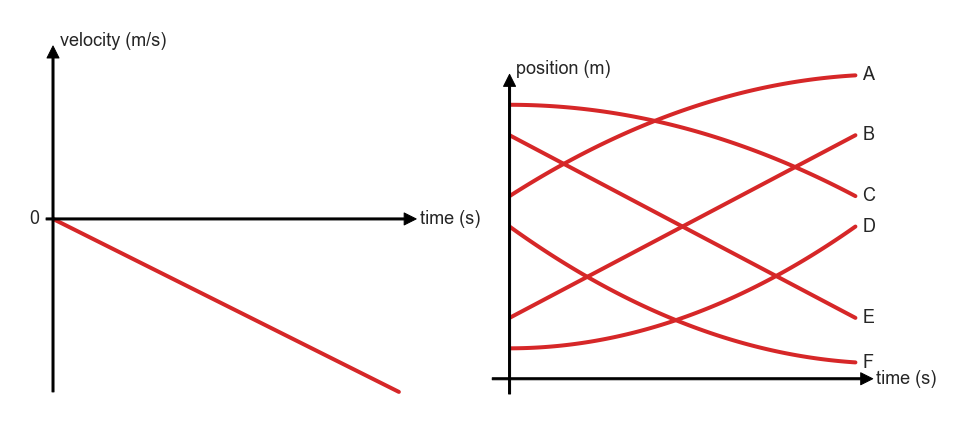

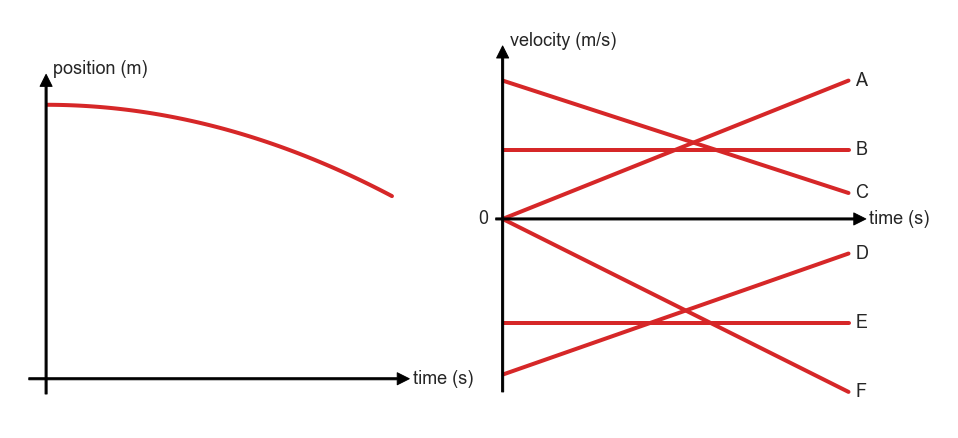

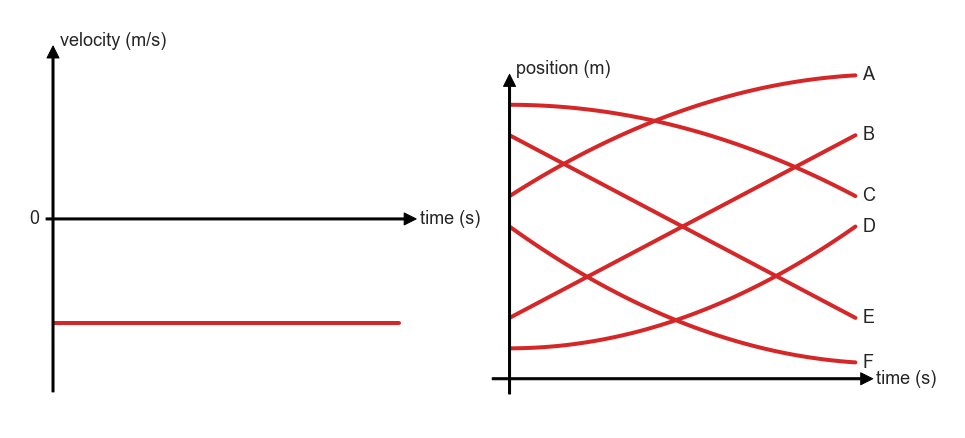

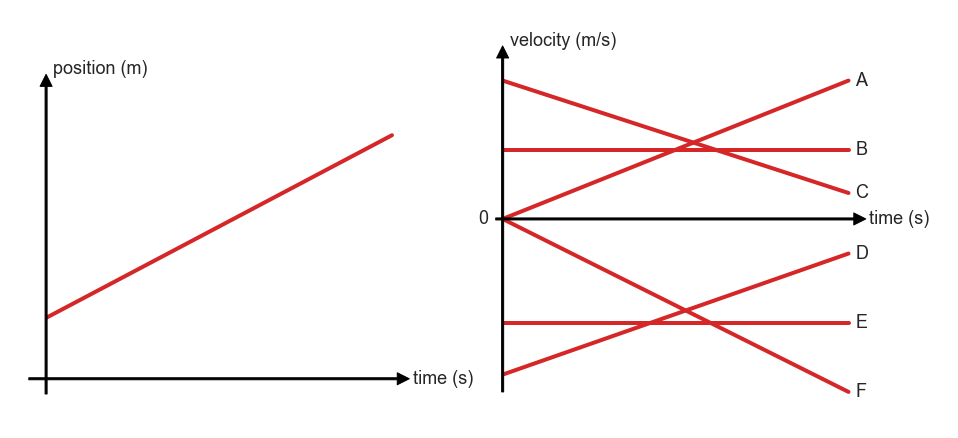

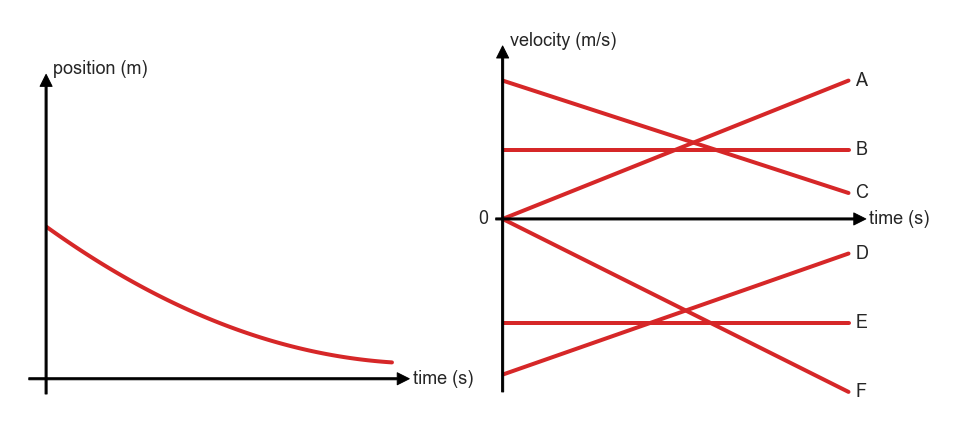

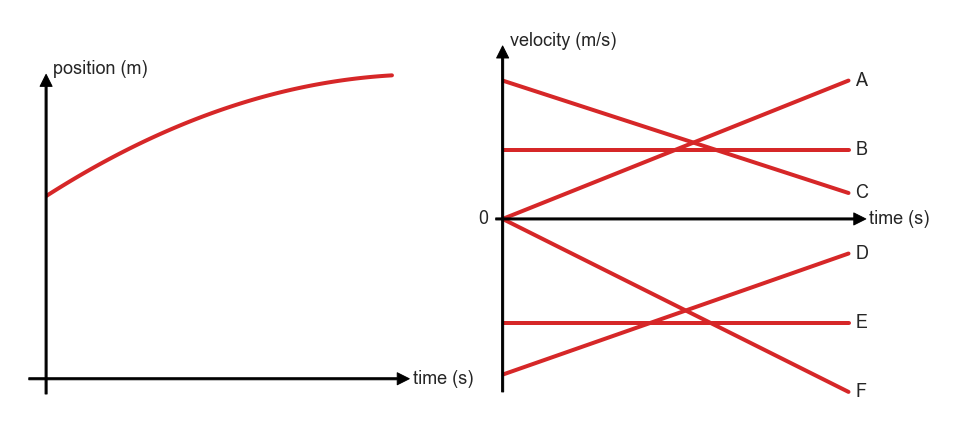

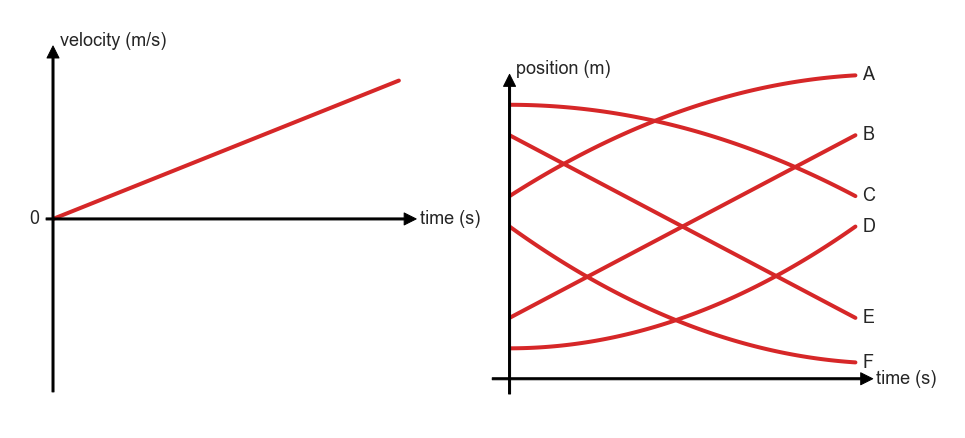

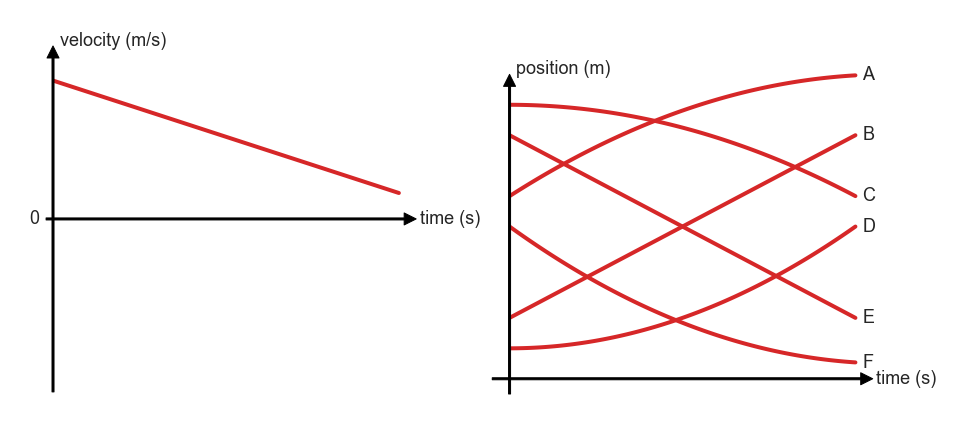

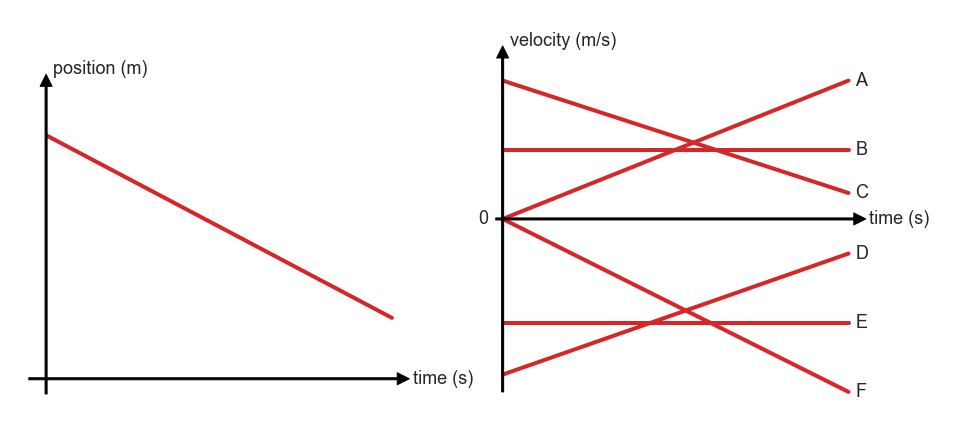

Match the curve on the left with one of the curves on the right.

Exercise 1

Exercise 2

Exercise 3

Exercise 4

Exercise 5

Exercise 6

Exercise 7

Exercise 8

Exercise 9

Exercise 10

Exercise 11

Exercise 12

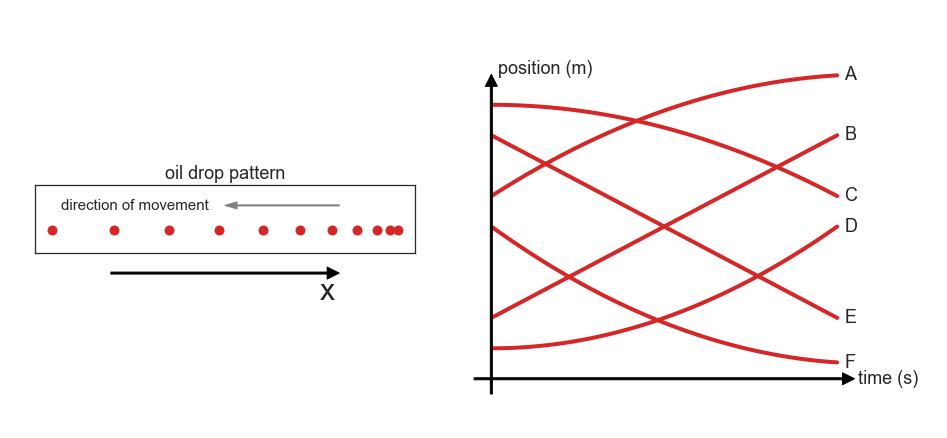

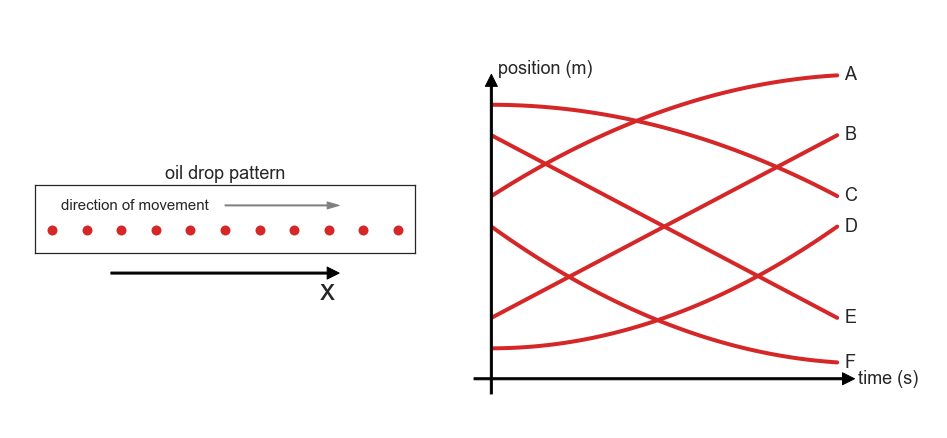

Oil drop patterns

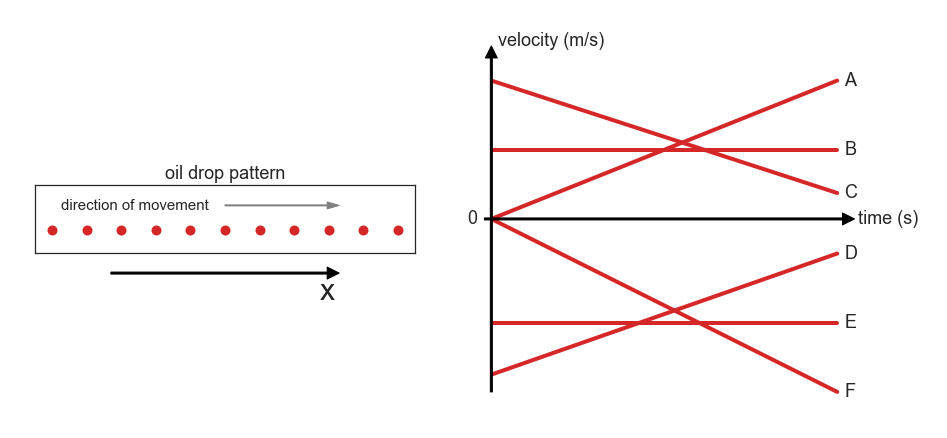

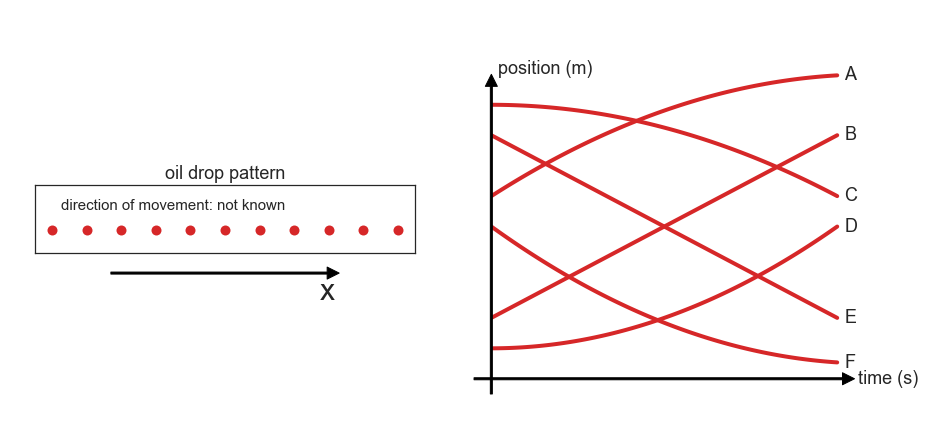

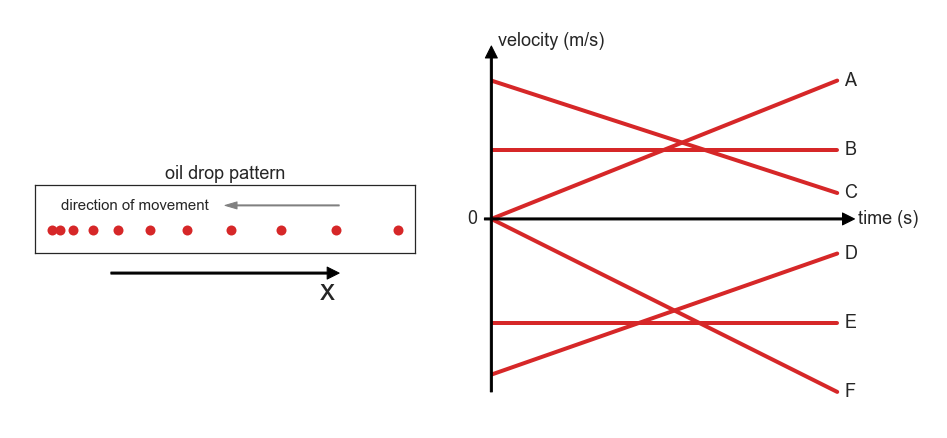

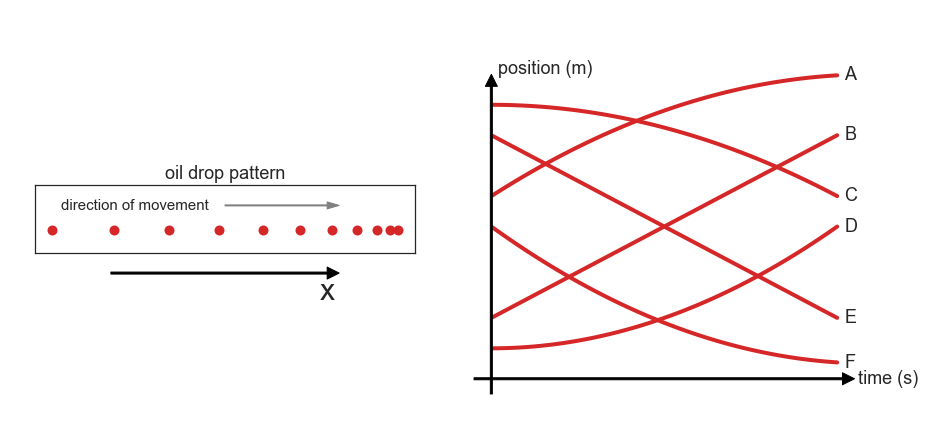

Oil drips from a car at fixed time intervals. Match the oil drop pattern the car leaves on the road with the curves on the right. Attention: there might be more than one solution!

Exercise 1

Exercise 2

Exercise 3

Exercise 4

Exercise 5

Exercise 6

Exercise 7

Exercise 8

Exercise 9

Exercise 10

Exercise 11

Exercise 12

Exercise 13

Exercise 14

Exercise 15

Exercise 16

Exercise 17

Exercise 18
